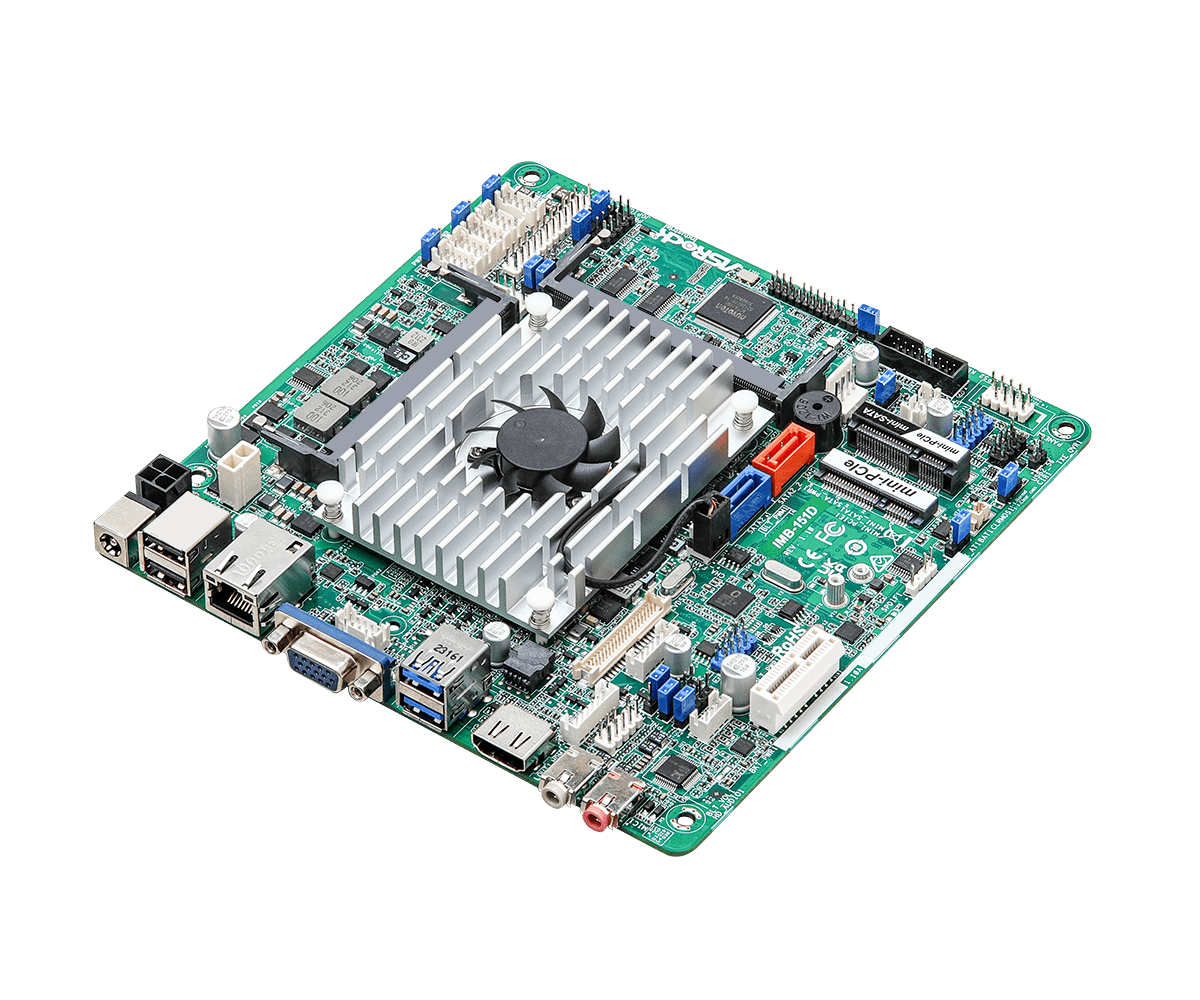

IMB-151
- Intel Baytrail SoC Processor J1900 (IMB-151D / IMB-151D-WF) / N2930 (IMB-151N)
- Supports Dual Channel DDR3L SO-DIMM 1333, up to 8GB
- 1 x HDMI, 1 x VGA, 1 x LVDS
- 4 x USB 3.0, 6 x USB 2.0, 2 x SATA2
- 1 x Mini-PCIe, 1 x PCIe x1, 1 x mSATA
- 1 x Realtek LAN
- 1 x TPM Header
- 12~19 V DC-in
Processor System
| CPU | Intel Baytrail SoC Processor - IMB-151D (J1900, QC, 2.00 GHz, 10 W) - IMB-151D-WF (J1900, QC, 2.00 GHz, 10 W) - IMB-151N (N2930, QC, 1.83 GHz, 7.5 W) |
|---|---|
| Chipset | SoC |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm) |
|---|
Memory
| Technology | Dual Channel DDR3 1333 MHz |
|---|---|
| Capacity | 8GB |
| Socket | 2 x SO-DIMM |
Graphics
| Controller | Intel Gen7 Intel Graphics DX 11*, OGL3.2 |
|---|---|
| HDMI | Supports max resolution up to 1920 x 1200 |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Supports max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Dual Display |
Expansion Slot
| PCIe | 1 x PCIe x1 |
|---|---|
| mini-PCIe/mSATA | 1 x Full size with PCIe x1, SATA2 and USB 2.0 |
| mini-PCIe | 1 x Half size with PCIe x1 and USB 2.0 |
Audio
| Interface | Realtek ALC662/897 HD, High Definition Audio. Mic-in / Line-out |
|---|
Ethernet
| Controller/ Speed | 10/100/1000 Mbps |
|---|---|
| Connector | 1 x Realtek RTL8111G/RTL8111H-CG |
Rear I/O
| HDMI | 1 |
|---|---|
| VGA | 1 |
| Ethernet | 1 |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Audio | 2 (Mic-in, Line-out) |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 3.0, 4 x USB 2.0 |
|---|---|
| COM | 4 x COM (RS-232), 1 x COM (RS-232/422/485) |
| Parallel | 1 |
| GPIO | 4 x GPI + 4 x GPO |
| TPM | 1 x Header |
| LVDS | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| VGA | 1 |
Storage
| SATA | 2 x SATA2 |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0–255 sec |
Power Requirements
| Input PWR | 12~19V DC-In (4-pin ATX PWR Con) |
|---|---|
| Power On | AT/ATX Supported - AT : Power on automatically when power applied - ATX : Press button to power on |
Environment
| Operating Temp | 0°C ~ 60°C |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020189000AK) 1 x I/O Shield THIN (13G020190000AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
|---|---|
| Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020189000AK) 1 x I/O Shield THIN (13G020190000AK) |
