IMB-190
- Intel 7th/6th Gen (Kabylake-S / Skylake-S) Core Processors with Q170 chipset
- Supports Dual Channel DDR4 SO-DIMM 2133, up to 32GB
- 3 x HDMI, 1 x LVDS
- 4 x USB 3.0, 4 x USB 2.0, 2 x SATA3, 4 x COM
- 2 x Mini-PCIe, 1 x PCIe x4, 1 x mSATA
- 2 x Intel LAN
- 1 x TPM Header
- Supports Intel vPro, AMT, RAID 0/1
- 12V / 19~24V DC-in
Processor System
| CPU | Supports Intel 7th / 6th Gen (Kabylake-S / Skylake-S) Core Processors (Socket 1151) |
|---|---|
| Chipset | Intel Q170 |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2133 MHz |
|---|---|
| Capacity | 32 GB |
| Socket | 2 x SO-DIMM |
Graphics
| Controller | Intel Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4 |
|---|---|
| HDMI | HDMI1: Supports max resolution 4096 x 2160@60Hz HDMI2 & 3: Supports max resolution 4096 x 2160@30Hz |
| VGA | Supports max resolution up to 1920 x 1200 |
| LVDS | Supports Dual channel 24-bit co-lay with eDP, max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 1 x PCIe x4 |
|---|---|
| mini-PCIe | 1 x Half size with PCIe x1 and USB 2.0 |
| mini-PCIe/mSATA | 1 x Full size with PCIe x1, SATA3 and USB 2.0 |
Audio
| Interface | Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in |
|---|
Ethernet
| Controller / Speed | LAN1: Intel I219LM with 10/100/1000 Mbps LAN2: Intel I210 with 10/100/1000 Mbps |
|---|

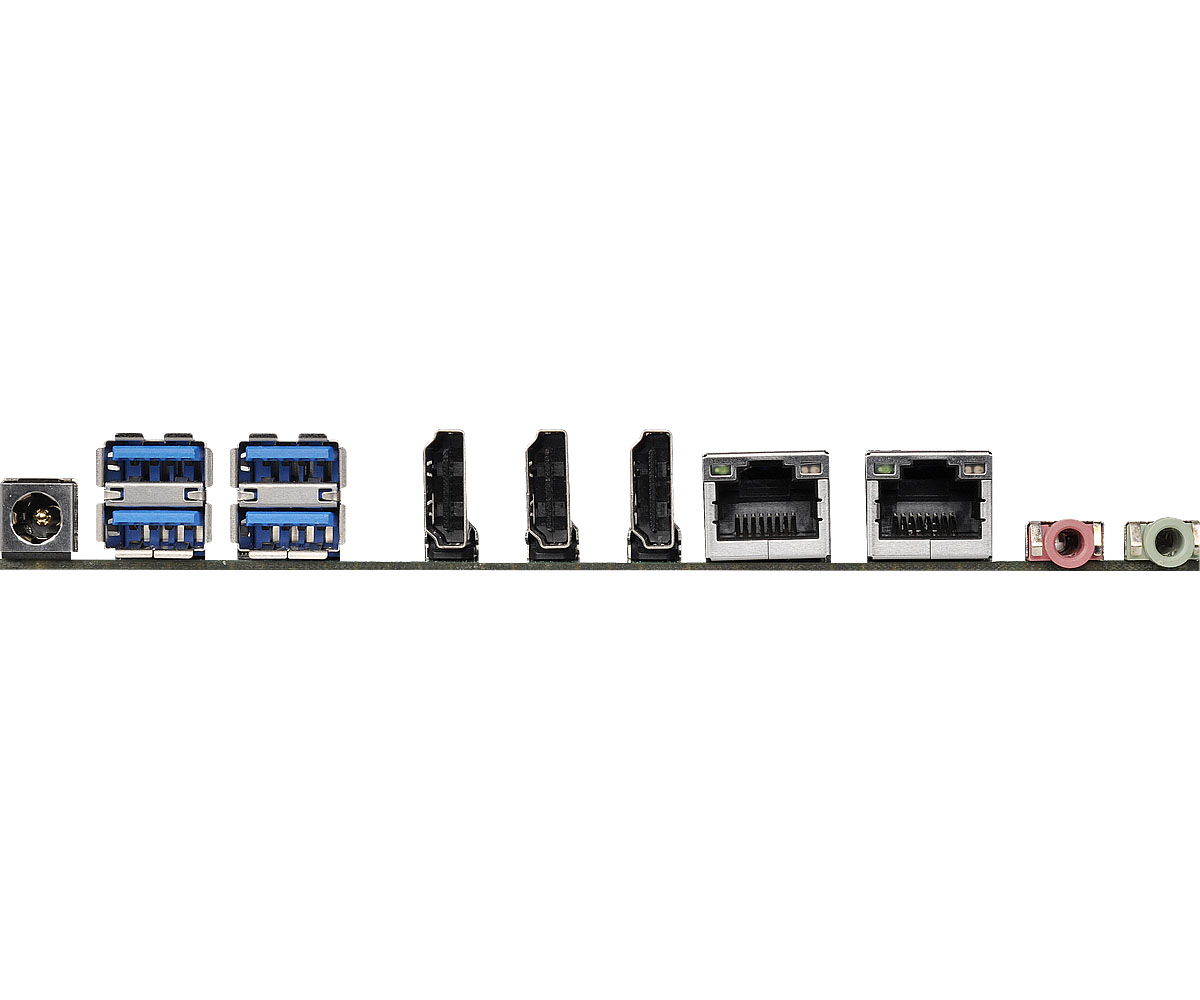

Rear I/O
| HDMI | 3 |
|---|---|
| Ethernet | 2 |
| USB | 4 x USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| DC Jack | 1 |
Internal Connector
| USB | 4 x USB 2.0 |
|---|---|
| COM | 2 x COM (RS-232), 2 x COM (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | 1 x Header |
| LVDS | 1 |
| VGA | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| SATA | 2 x SATA3 (6.0Gb/s) |
|---|---|
| RAID | Intel SATA RAID 0/1 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V / 19~24V DC-in (DC Jack / 4-pin ATX PWR Con) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0°C ~ 60°C |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020313000AK) 1 x I/O Shield THIN (13G020313020AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
|---|---|
| Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020313000AK) 1 x I/O Shield THIN (13G020313020AK) |
