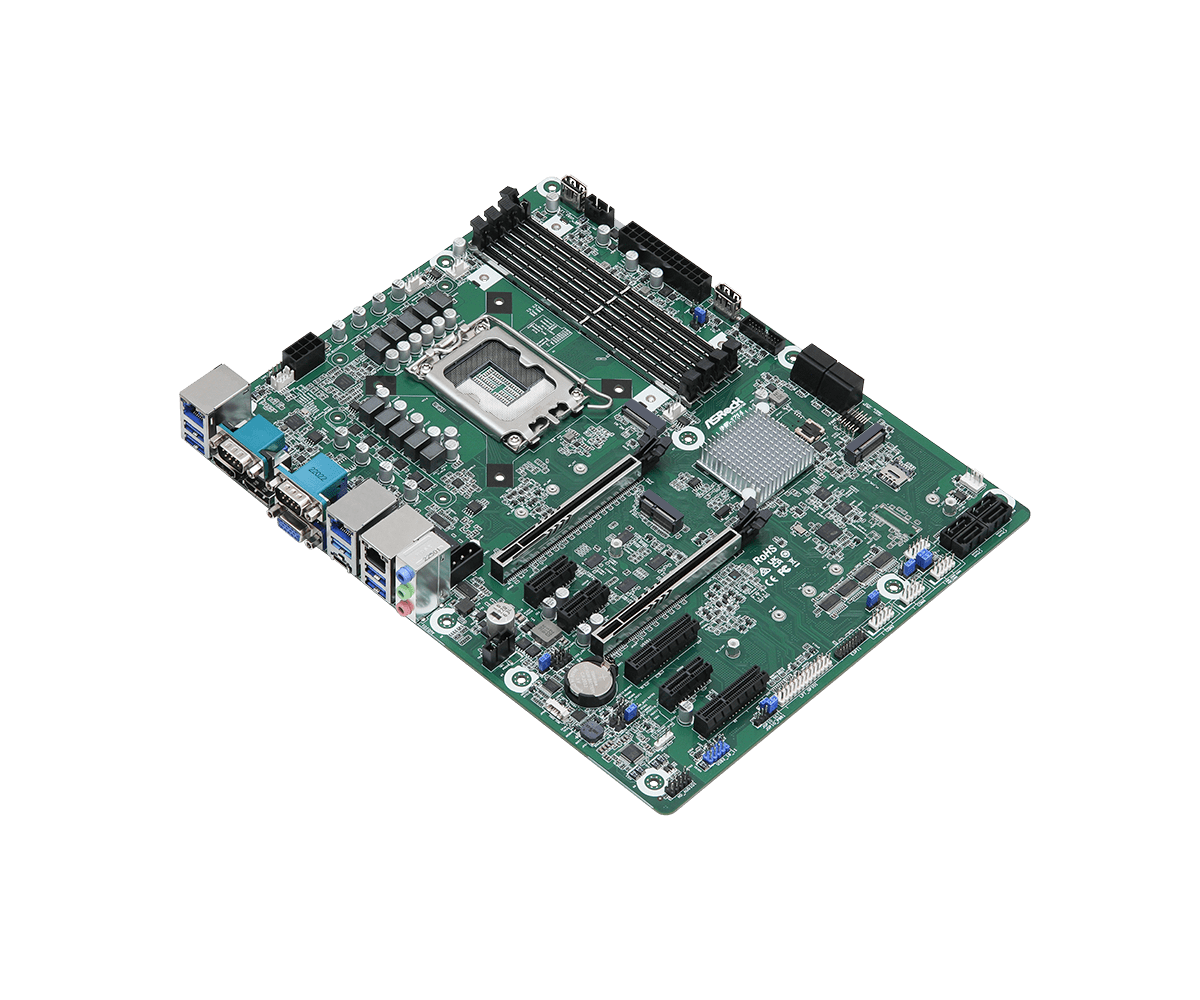

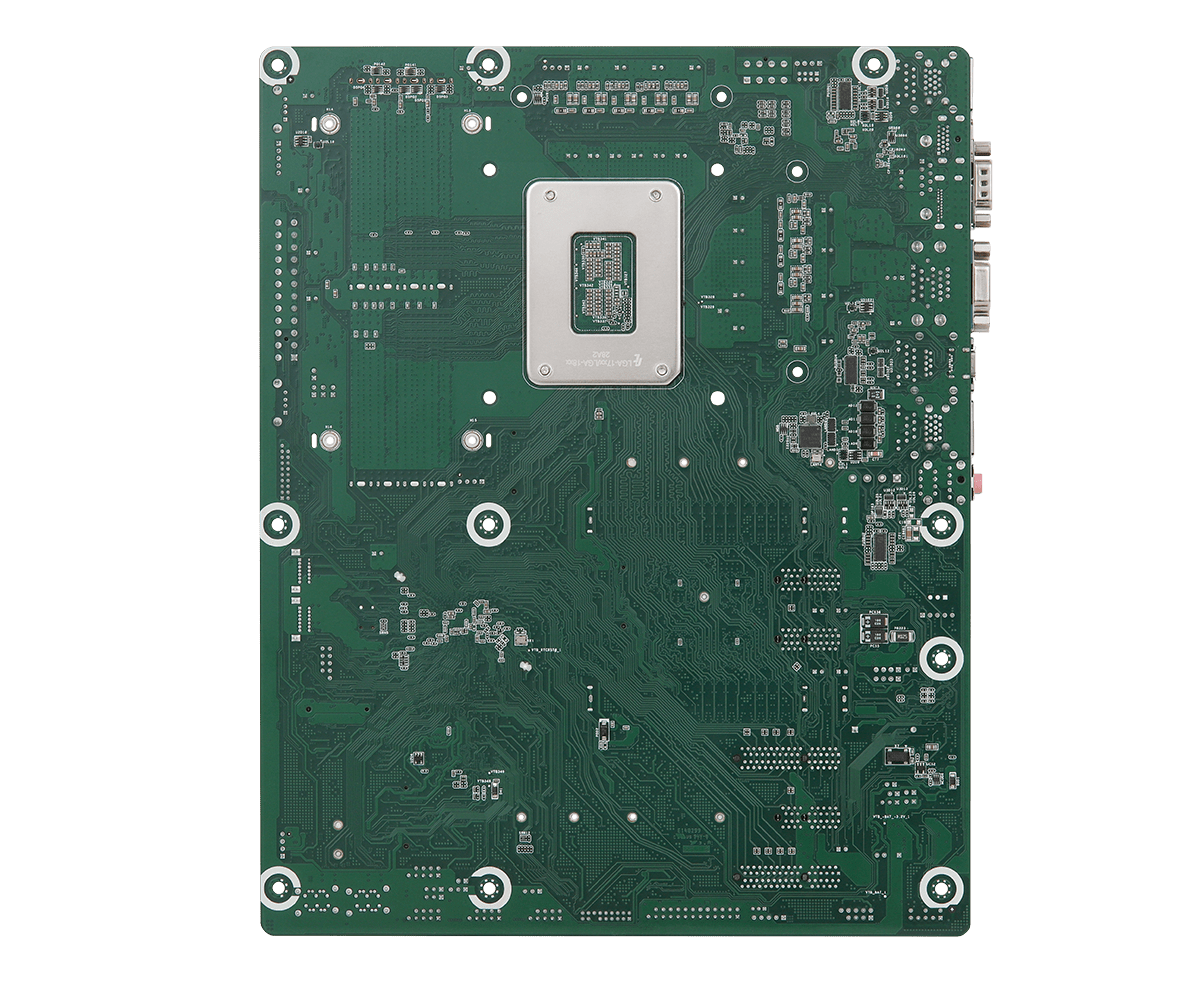

IMB-1714
- Intel 14th/13th/12th Gen (Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S) Core Processors with Q670 chipset
- 4 x 288-pin Long-DIMM DDR5 4400/5600 MHz, up to 192GB (48GB per DIMM)
- 1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 2 x PCIe x4 (Gen4), 3 x PCIe x1 (Gen3)
- 1 x USB 3.2 Gen2x2 Type-C, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0
- 1 x M.2 Key B, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 8 x SATA3
- 3 x Intel 2.5 Gigabit LAN
- Triple display: HDMI 2.0b, DP 1.4a, VGA
- TPM 2.0 onboard IC
- Supports Intel vPro, VMD RAID 0/1/5/10
- ATX PWR (8+24 Pin)
Processor System
| CPU | Intel 14th/13th/12th Gen Core Processors, up to 125W |
|---|---|
| Chipset | Intel Q670 |
| Socket | LGA1700 |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 4400/5600 MHz* *Actual frequency depends on CPU and DRAM modules. Refer to ASRock technical FAQ for supported frequencies. |
|---|---|
| Capacity | 192GB (48GB per DIMM) |
| Socket | 4 x 288-pin Long-DIMM |
Graphics
| Controller | Intel UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b, max 4096x2160@60Hz |
| DisplayPort | DP 1.4a, DP++, max 4096x2160@60Hz |
| VGA | Max 1920x1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 2 x PCIe Gen5 Slots (PCIE1/PCIE4: single x16 or dual x8/x8, supports riser card x8/x8) 2 x PCIe x4 (Gen4) 3 x PCIe x1 (Gen3) |
|---|---|
| M.2 | 1 x M.2 Key E (2230), PCIe x1, USB 2.0, CNVi for Wireless 1 x M.2 Key B (3042/3052), PCIe x1, USB 3.2 Gen1/2.0, SIM for 4G/5G |
| SIM Socket | 1 x SIM connected to M.2 Key B |
Audio
| Interface | Realtek ALC897 HD Audio, Line-in / Line-out / Mic-in |
|---|
Ethernet
| Controller / Speed | LAN1: Intel I226V, 10/100/1000/2500 Mbps, PoE supported LAN2: Intel I226LM, 10/100/1000/2500 Mbps, vPro supported LAN3: Intel I226V, 10/100/1000/2500 Mbps *PoE: 54V, Imax 0.6A |
|---|---|
| Connector | 3 x RJ-45 |

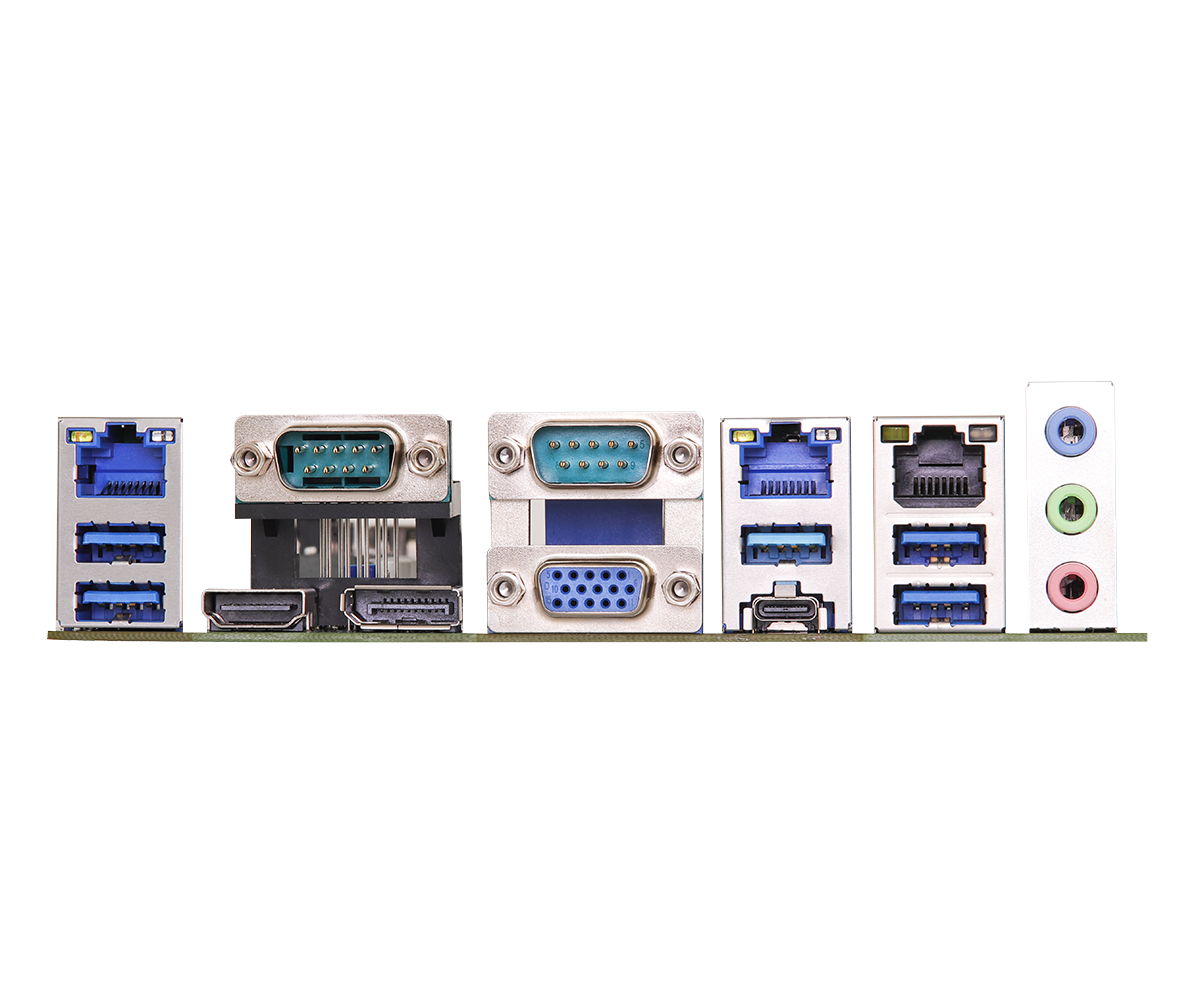

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 1 x DP 1.4a++ |
| VGA | 1 |
| Ethernet | 3 x 2.5GbE |
| USB | 5 x USB 3.2 Gen2, 1 x USB 3.2 Gen2x2 Type-C (5V/3A) |
| Audio | Mic-in, Line-in, Line-out |
| COM | COM1, COM2 (RS-232/422/485) |
Internal Connector
| USB | 2 x USB 3.2 Gen1, 4 x USB 2.0 |
|---|---|
| COM | COM3~COM6 (RS-232) |
| Parallel | 1 |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT) |
| PS/2 | 1 x header |
| Thunderbolt Header | 1 |
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 Key M (2242/2260/2280/22110/25110) PCIe Gen4 x4 SSD |
|---|---|
| SATA | 8 x SATA3 (6Gb/s) |
| RAID | Intel VMD RAID 0/1/5/10 (PCIe or SATA interface) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 segments, 0~255 sec |
Power Requirements
| Input PWR | ATX PWR (8+24 Pin) |
|---|---|
| Power On | AT/ATX Supported. AT: Direct PWR on. ATX: Press button after power ready. |
Environment
| Operating Temp | -20°C ~ 70°C |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SATA Cable, 1 x I/O Shield, 3 x SCREW M2*2,D=5 |
|---|---|
| Bulk Package | 1 x I/O Shield, 3 x SCREW M2*2,D=5 |
