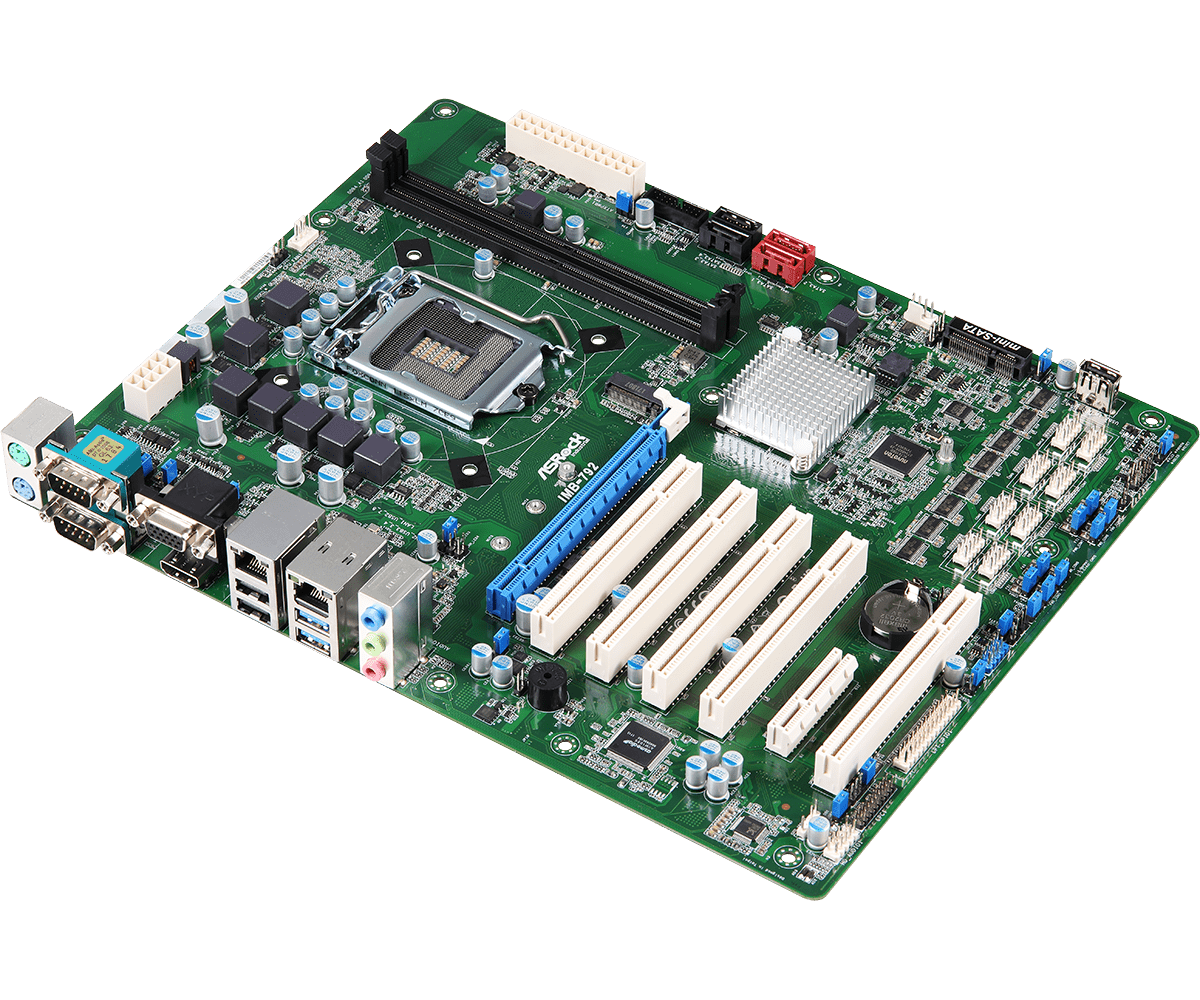

IMB-792
- Intel 7th/6th Gen (Kabylake-S / Skylake-S) Core Processors with H110 chipset
- Dual Channel DDR4 2133 MHz, up to 32GB
- 1 x VGA, 1 x HDMI
- 4 x USB 3.0, 5 x USB 2.0, 4 x SATA3, 10 x COM
- 1 x PCIe x16, 1 x PCIe x4, 5 x PCI
- 1 x mSATA, 1 x M.2 (Key M)
- 2 x Intel LAN
- 1 x TPM Header
- ATX PWR (24 + 8-pin)
Processor System
| CPU | Intel 7th / 6th Gen (Kabylake-S / Skylake-S) Core Processors |
|---|---|
| Chipset | Intel H110 |
| Socket | LGA1151 |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2133 MHz |
|---|---|
| Capacity | Up to 32GB |
| Socket | 2 x Long-DIMM |
Graphics
| Controller | Intel Gen9 Graphics (DX11/12, OGL 4.3/4.4) |
|---|---|
| VGA | Up to 1920 × 1200 |
| HDMI | Up to 4096 × 2160 @ 30Hz |
| Multi-Display | Dual Display |
Expansion Slot
| PCIe | 1 x PCIe x16, 1 x PCIe x4 |
|---|---|
| PCI | 5 |
Audio
| Interface | Realtek ALC887 / ALC897 HD Audio (Line-out, Line-in, Mic-in) |
|---|
Ethernet
| Controller / Speed | Intel I219V (10/100/1000 Mbps) Intel I210 (10/100/1000 Mbps) |
|---|---|
| Connector | 2 x RJ-45 |

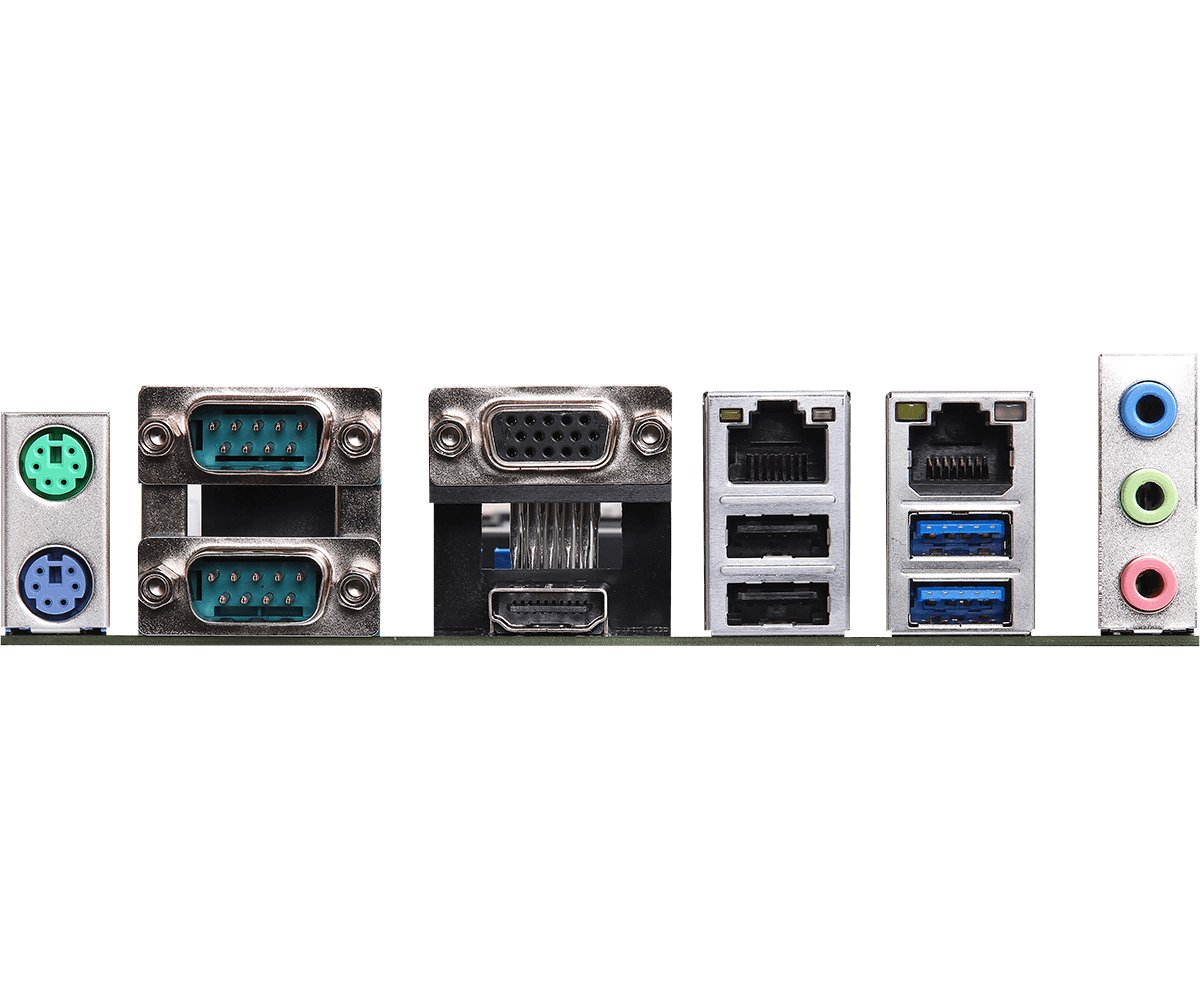

Rear I/O
| VGA | 1 |
|---|---|
| HDMI | 1 |
| Ethernet | 2 |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Audio | Mic-in / Line-in / Line-out |
| COM | 2 x COM (RS-232/422/485) |
| PS/2 | 2 (1 x keyboard, 1 x mouse) |
Internal Connector
| USB | 2 x USB 3.0, 3 x USB 2.0 |
|---|---|
| COM | 8 x COM (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT) |
| TPM | 1 x Header |
| Speaker Header | 1 |
Storage
| mSATA | 1 x Full-size (shared SATA3 & USB 2.0) |
|---|---|
| SATA | 4 x SATA3 (one shared with M.2, one shared with mSATA) |
| M.2 | 1 x M.2 Key M (2242/2260/2280), shared SATA3 |
Watchdog Timer
| Output | Super I/O to RESETCON# |
|---|---|
| Interval | 256 levels (0–255 sec) |
Power Requirements
| Input PWR | ATX PWR (24 + 8-pin) |
|---|---|
| Power On | AT / ATX Supported - AT: Auto power-on when power is applied - ATX: Requires power button |
Environment
| Operating Temp | 0°C ~ 60°C |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 1 x I/O Shield (13G020506000AK) 2 x SATA Data Cable (14G00010107DAK) |
|---|---|
| Bulk Package | 2 x WiFi Card Screws (13G020305011AK) 1 x I/O Shield (13G020506000AK) |
