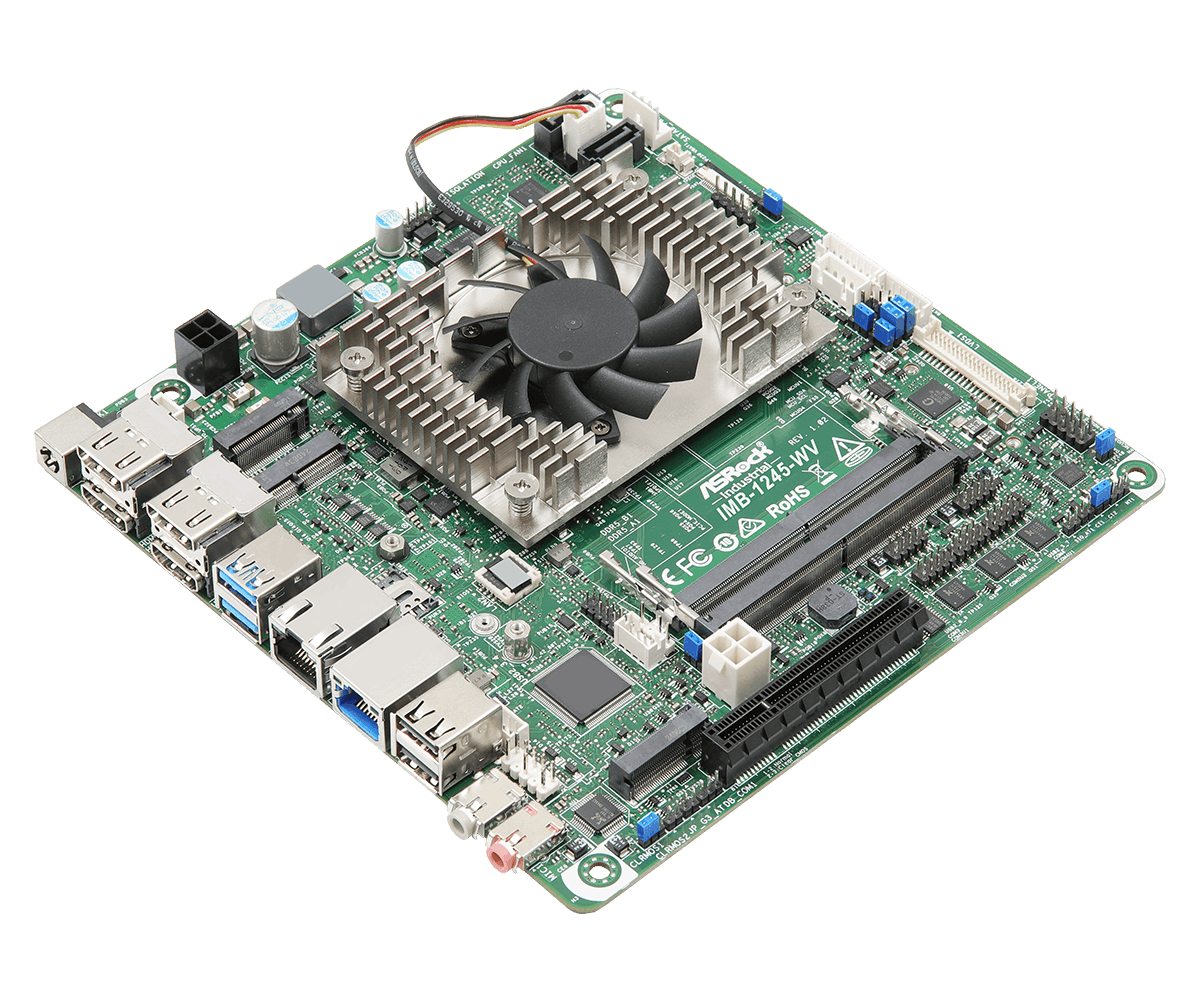

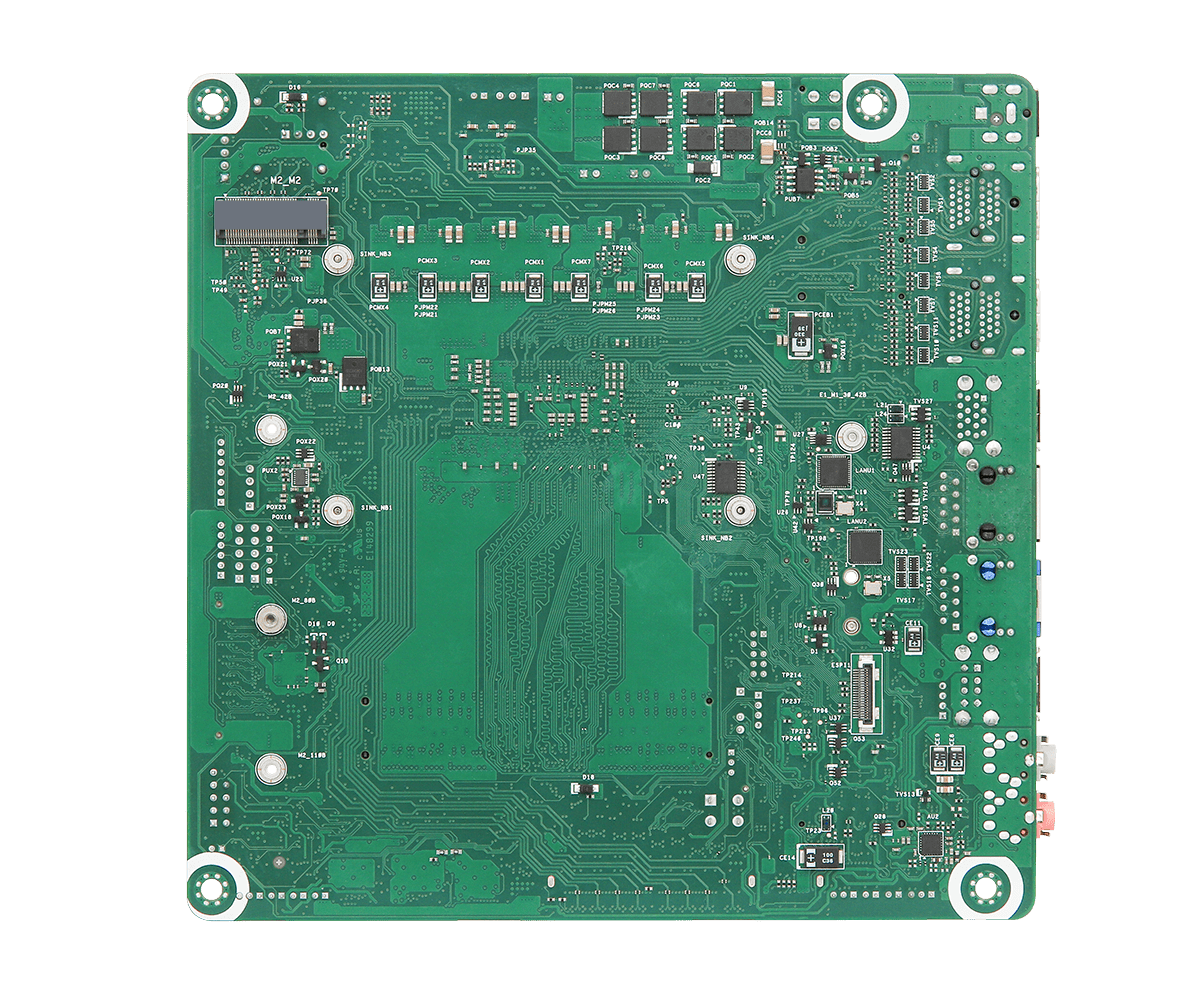

IMB-1245-WV
- Intel Core Ultra processors (Meteor Lake-H)
- 2 x 262-pin SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)
- 1 x PCIe x8 (Gen5), 2 x USB 3.2 Gen2, 6 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 3 x COM, 2 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 4 x HDMI, 1 x LVDS or eDP
- Supports Intel vPro, VMD RAID 0/1
- 12~28V DC-In
Processor System
| CPU | Intel Core Ultra processors (Meteor Lake-H) IMB-1245P-WV (Ultra7 155H, 6P+8E) IMB-1245M-WV (Ultra5 125H, 4P+8E) |
|---|---|
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 0.97-in) |
|---|
Memory
| Technology | Dual Channel DDR5 5600 MHz |
|---|---|
| Capacity | 96GB (48GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
Graphics
| Controller | Intel Arc Graphics |
|---|---|
| HDMI | Up to 7680x4320@60Hz (HDMI0/1) Up to 4096x2160@60Hz (HDMI2/3) |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz (shared with eDP) |
| eDP | Up to 1920x1080@60Hz (shared with LVDS) |
| MultiDisplay | Quad display |
Expansion Slot
| PCIe | 1 x PCIe x8 (Gen5) |
|---|---|
| M.2 | 1 x M.2 Key E (2230) with PCIe Gen4 x1, USB 2.0, CNVi 1 x M.2 Key B (3042/3052) with PCIe Gen4 x1, USB 3.2 Gen1, USB 2.0, SIM 1 x SIM socket (for M.2 Key B module) |
Audio
| Interface | Realtek ALC897 HD Audio |
|---|
Ethernet
| Controller / Speed | LAN1: Intel I219LM (1GbE, vPro) LAN2: Realtek RTL8125BG (2.5GbE) |
|---|---|
| Connector | 2 x RJ-45 |

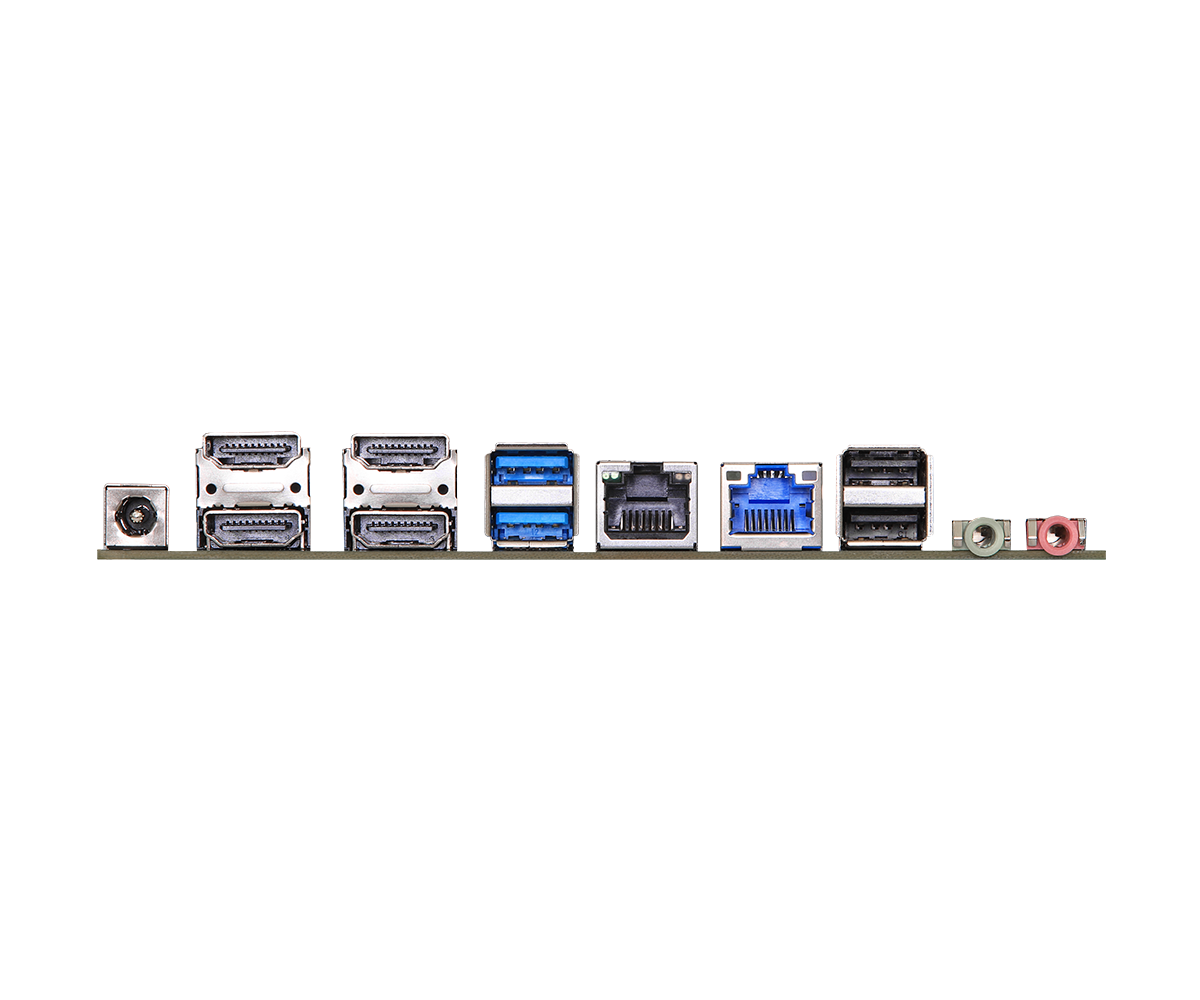

Rear I/O
| HDMI | 4 x HDMI |
|---|---|
| Ethernet | 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 2 x USB 3.2 Gen2 |
| Audio | Mic-In / Line-Out |
| DC Jack | 1 |
Internal Connector
| USB | 4 x USB 2.0 (2 x headers) |
|---|---|
| COM | COM3/4/5 (RS-232/422/485) |
| LVDS/eDP | 1 (selectable in BIOS) |
| SATA PWR | 1 |
| Speaker Header | 1 |
| MIPI Camera | 1 |
Security
| TPM | TPM Header |
|---|
Storage
| M.2 | 1 x M.2 Key M (2242/2280) PCIe Gen4 x4 1 x M.2 Key M (2242/2280/22110) PCIe Gen4 x4 |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
| RAID | Intel VMD RAID 0/1 (PCIe or SATA matched pairs) |
Watchdog Timer
| Output | Super I/O to RESETCON# |
|---|---|
| Interval | 0–255 sec (256 steps) |
Power Requirements
| Input | 12~28V DC-In (4-pin plug or DC jack) |
|---|---|
| Power On | AT / ATX supported AT: auto-power ATX: power button required |
Environment
| Operating Temp | -20°C ~ 70°C |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 1 x SATA Power Cable 2 x COM Cable 2 x SATA Data Cable 1 x I/O Shield 1 x I/O Shield THIN 4 x Screws |
|---|---|
| Bulk Package | 1 x I/O Shield 1 x I/O Shield THIN 4 x Screws |
