IMB-191
- Intel 7th / 6th Gen (Kabylake-S / Skylake-S) Core Processors with H110 chipset
- 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
- 1 x PCIe x4 (Gen2), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x mSATA, 4 x COM, 2 x SATA3
- 2 x Intel Gigabit LAN
- Supports dual display, 2 x HDMI 1.4b, 1 x VGA header, 1 x LVDS
- TPM Header
- 12V / 19~24V DC-In
Processor System
| CPU | Intel 7th/6th Gen (Kabylake-S/Skylake-S) Core Processors |
|---|---|
| Chipset | Intel H110 |
| Socket | LGA1151 |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in) |
|---|
Memory
| Technology | Dual Channel DDR4 2133 MHz |
|---|---|
| Capacity | 32 GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel Gen9 Graphics DX 11/12 |
|---|---|
| HDMI | HDMI 1.4b Max resolution up to 4096x2160@24Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
| LVDS | Dual channel 24-bit, up to 1920x1200@60Hz |
| MultiDisplay | Dual Display |
Expansion Slot
| PCIe | 1 x PCIe x4 (Gen2) |
|---|---|
| mini-PCIe | 1 x Half size with PCIe x1 and USB 2.0 |
Audio
| Interface | Realtek ALC887/897 HD Audio, Line-out, Mic-in |
|---|
Ethernet
| Controller / Speed | LAN1: Intel I219V – 10/100/1000 Mbps LAN2: Intel I210 – 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

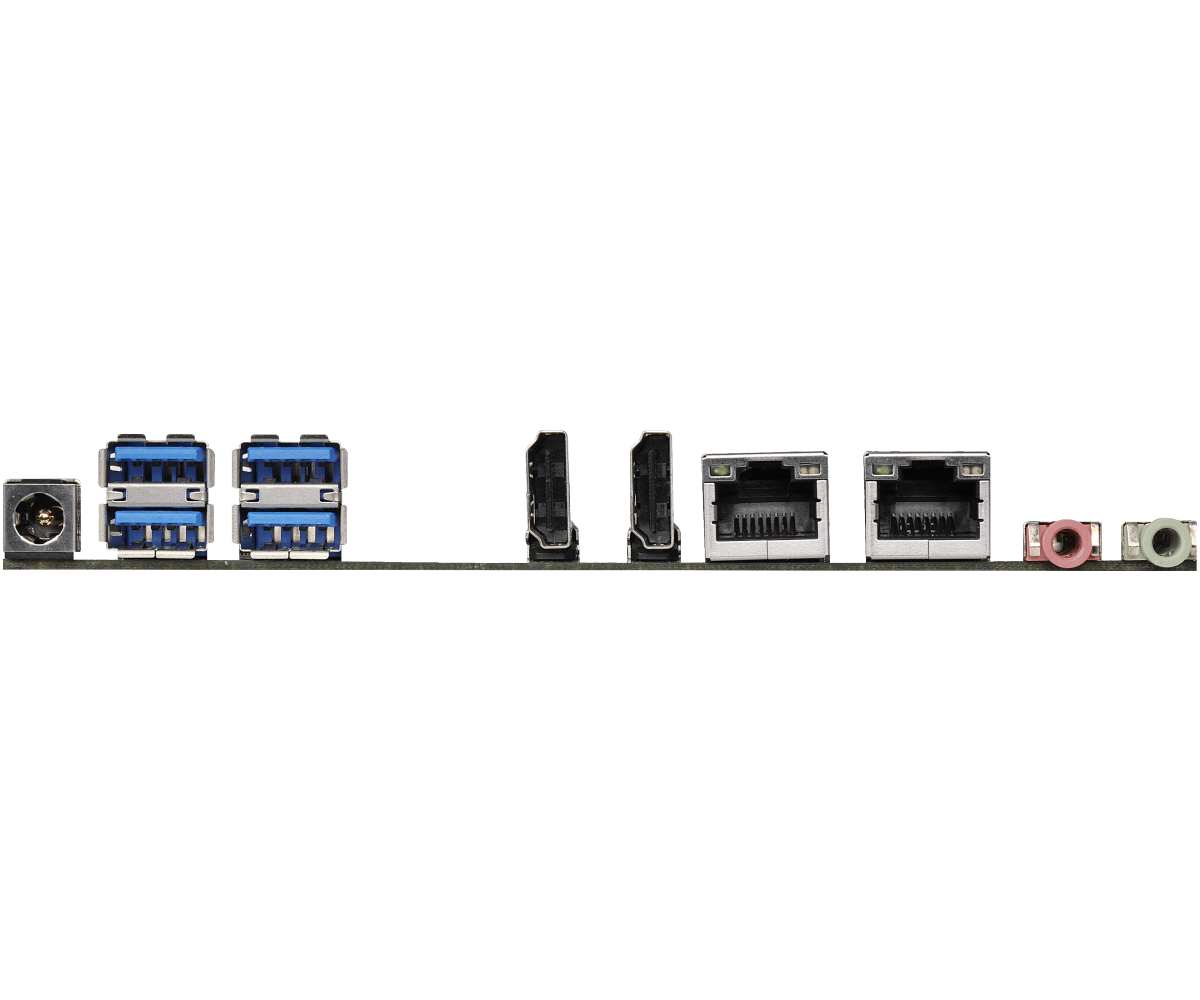

Rear I/O
| HDMI | 2 x HDMI 1.4b |
|---|---|
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.0 |
| Audio | Mic-in, Line-out |
| DC Jack | 1 |
Internal Connector
| USB | 4 x USB 2.0 (2 x 2.54 pitch headers) |
|---|---|
| COM | COM1,2 (RS-232/422/485) COM3,4 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | TPM Header |
| LVDS | 1 |
| VGA | 1 x Header |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| mSATA | 1 x Full-size with SATA3 & USB 2.0 |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drive RESETCON# |
|---|---|
| Interval | 256 Segments: 0 ~ 255 sec |
Power Requirements
| Input PWR | 12V or 19~24V DC-In (4-pin PWR or DC Jack) |
|---|---|
| Power On | AT / ATX Supported: - AT: Power on automatically when input is ready - ATX: Press button to power on |
Environment
| Operating Temp | 0°C ~ 60°C |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020325000AK) 1 x I/O Shield THIN (13G020325010AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
|---|---|
| Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020325000AK) 1 x I/O Shield THIN (13G020325010AK) |
