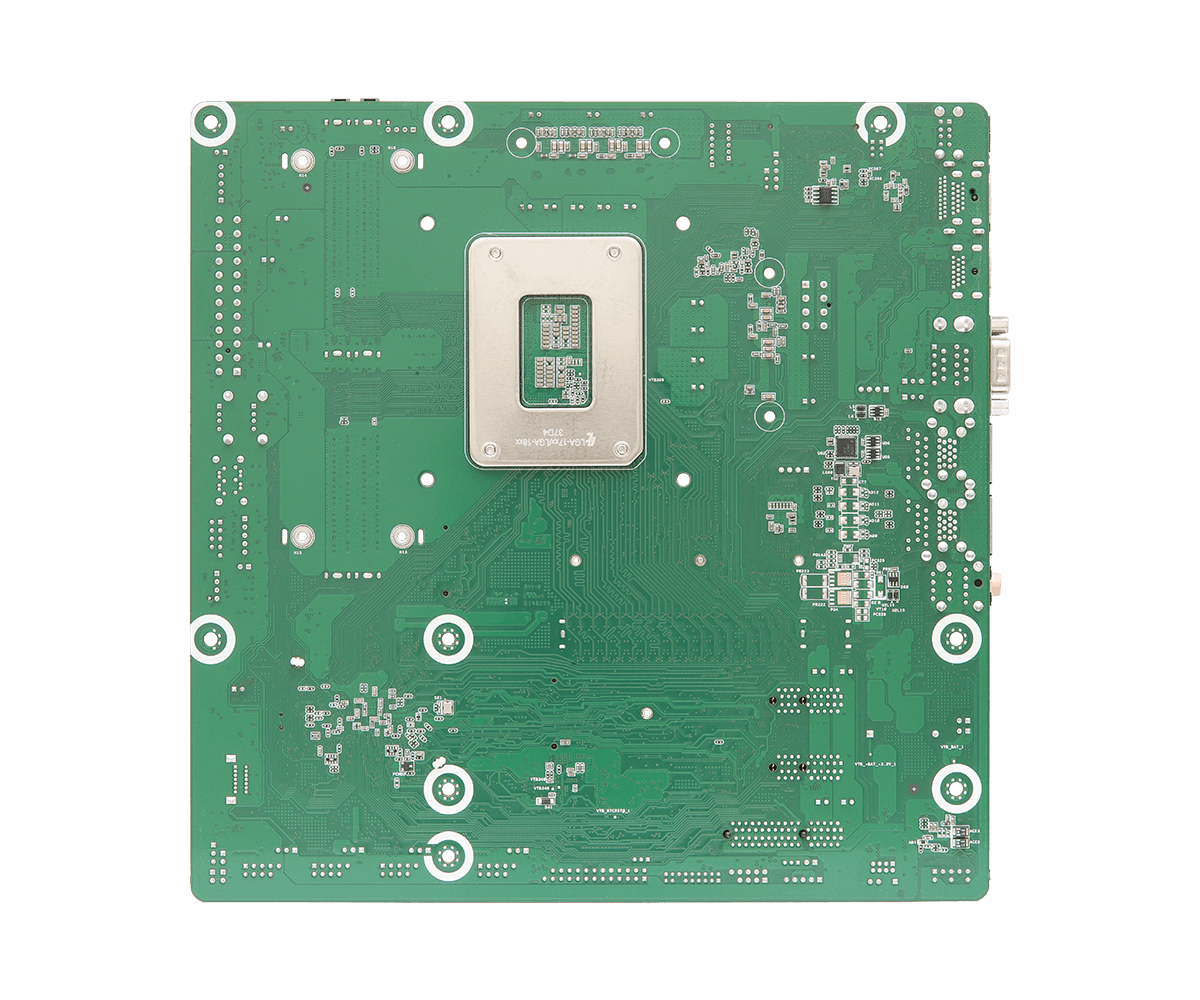

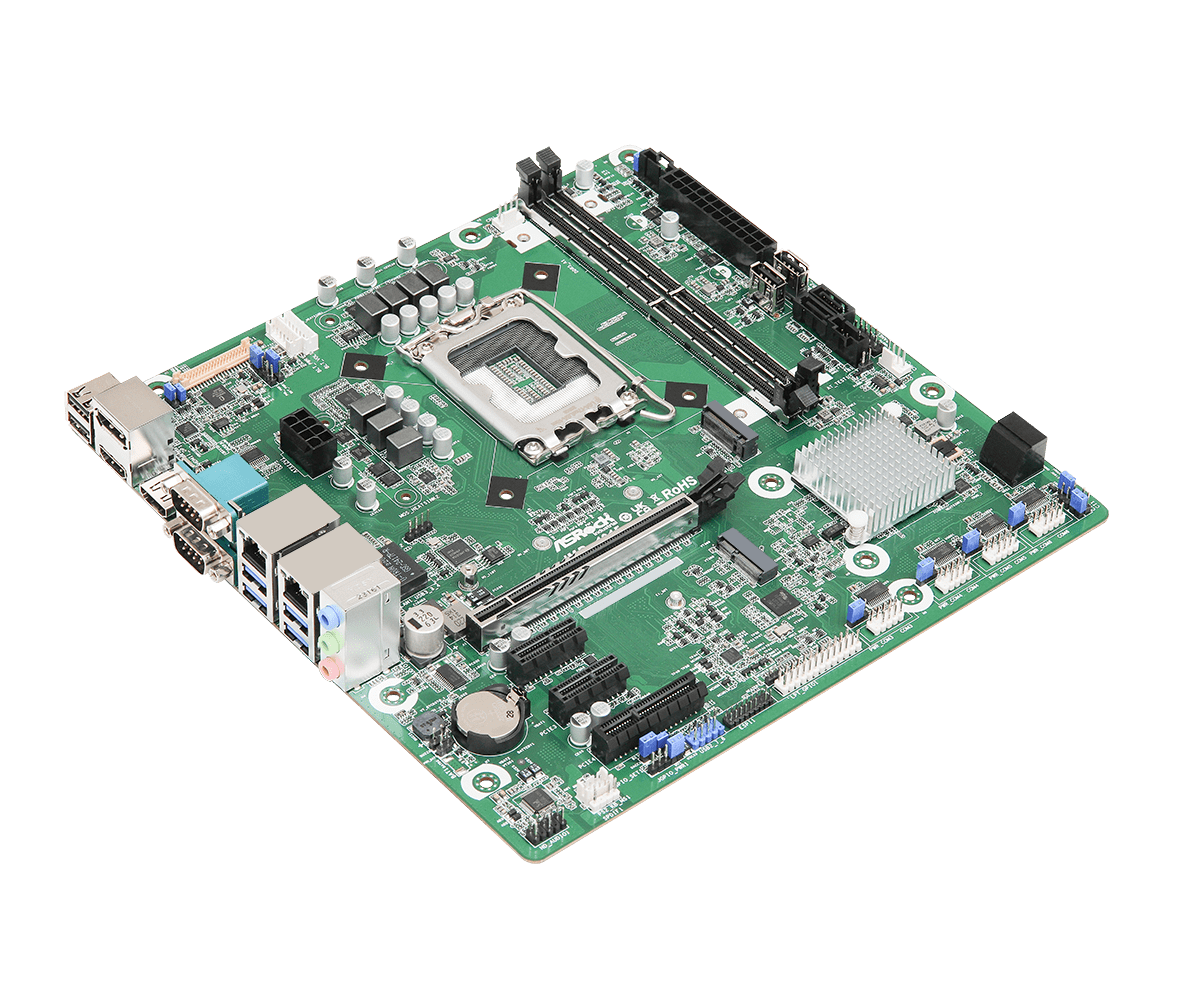

IMB-1315
- Intel 14th/13th/12th Gen Core Processors (Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S) with H610 chipset
- 2 x 288-pin Long-DIMM DDR5 4800/5600 MHz, up to 96GB (48GB per DIMM)
- 1 x PCIe x16 (Gen5), 1 x PCIe x4 (Gen3), 2 x PCIe x1 (Gen3), 4 x USB 3.2 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 4 x SATA3
- 2 x Intel 1 Gigabit LAN
- Supports Triple display: 1 x HDMI 2.0b, 1 x HDMI 1.4b, 1 x DP 1.4a, 1 x LVDS/eDP
- TPM 2.0 onboard IC
- ATX Power Input (24+8 pin)
Processor System
| CPU | Intel 14th/13th/12th Gen Core Processors (up to 65W) |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA 1700 |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Micro-ATX (9.6-in x 9.6-in x 1.56-in) |
|---|
Memory
| Technology | Dual Channel DDR5 4800 / 5600 MHz* * Actual frequency depends on CPU and DRAM. (See ASRock FAQ) |
|---|---|
| Capacity | 96GB (48GB per DIMM) |
| Socket | 2 x 288-pin Long-DIMM |
Graphics
| Controller | Intel UHD Graphics |
|---|---|
| HDMI | HDMI 1.4b: up to 4096x2160@30Hz HDMI 2.0b: up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4a (DP++), up to 4096x2160@60Hz |
| LVDS | Dual-channel 24-bit up to 1920x1200@60Hz (shared with eDP) |
| eDP | Up to 1920x1080@60Hz (shared with LVDS) |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 1 x PCIe x16 (Gen5) 1 x PCIe x4 (Gen3) 2 x PCIe x1 (Gen3) |
|---|---|
| M.2 | 1 x M.2 Key E (2230) with CNVi (Wireless) |
Audio
| Interface | Realtek ALC897 HD Audio (Line-In, Line-Out, Mic-In) |
|---|
Ethernet
| Controller / Speed | LAN1: Intel I210AT (1GbE, optional PoE) LAN2: Intel I219V (1GbE) |
|---|---|
| Connector | 2 x RJ-45 |

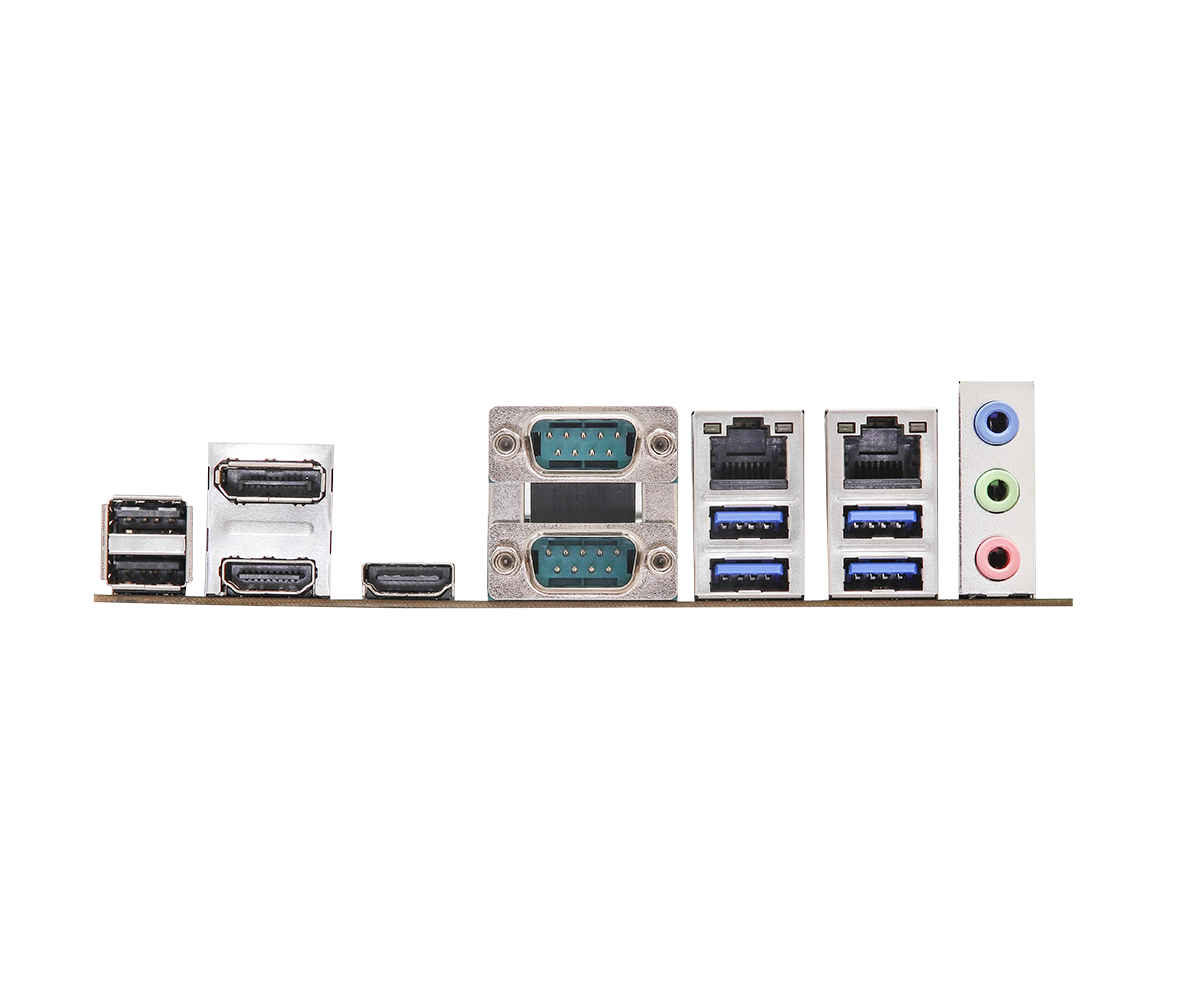

Rear I/O
| HDMI | 1 x HDMI 2.0b 1 x HDMI 1.4b |
|---|---|
| DisplayPort | 1 x DP++ |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.2 Gen1 2 x USB 2.0 |
| Audio | Line-In / Line-Out / Mic-In |
| Serial Port | COM1 (RS-232/422/485), COM2 (RS-232) |
Internal Connector
| USB | 4 x USB 2.0 (1 x header, 2 x vertical Type-A) |
|---|---|
| COM | COM3, COM4, COM5, COM6 (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT) |
| LVDS/eDP | 1 (selectable in BIOS) |
| Speaker Header | 1 |
| PS/2 | 1 |
| Thunderbolt Header | 1 |
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 Key M (2242/2280/25110) PCIe Gen3 x1 |
|---|---|
| SATA | 4 x SATA3 |
Watchdog Timer
| Output | Super I/O to RESETCON# |
|---|---|
| Interval | 0–255 sec (256 options) |
Power Requirements
| Input | ATX Power (24+8 pin) |
|---|---|
| Power On | AT / ATX supported AT: auto power-on ATX: requires power button |
Environment
| Operating Temp | -20°C ~ 70°C |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SATA Data Cable 1 x I/O Shield 2 x M2 Screws |
|---|---|
| Bulk Package | 1 x I/O Shield 2 x M2 Screws |
