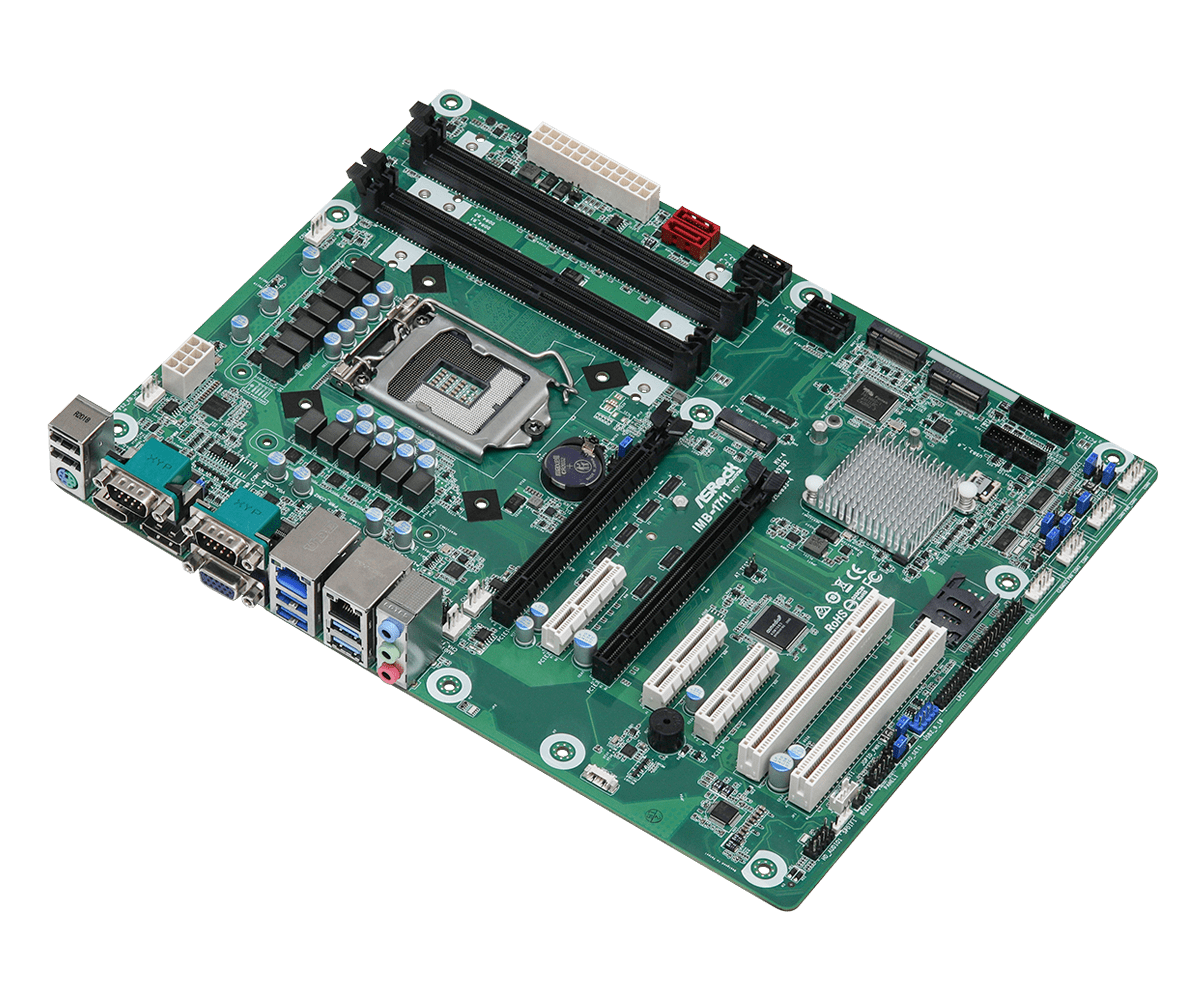

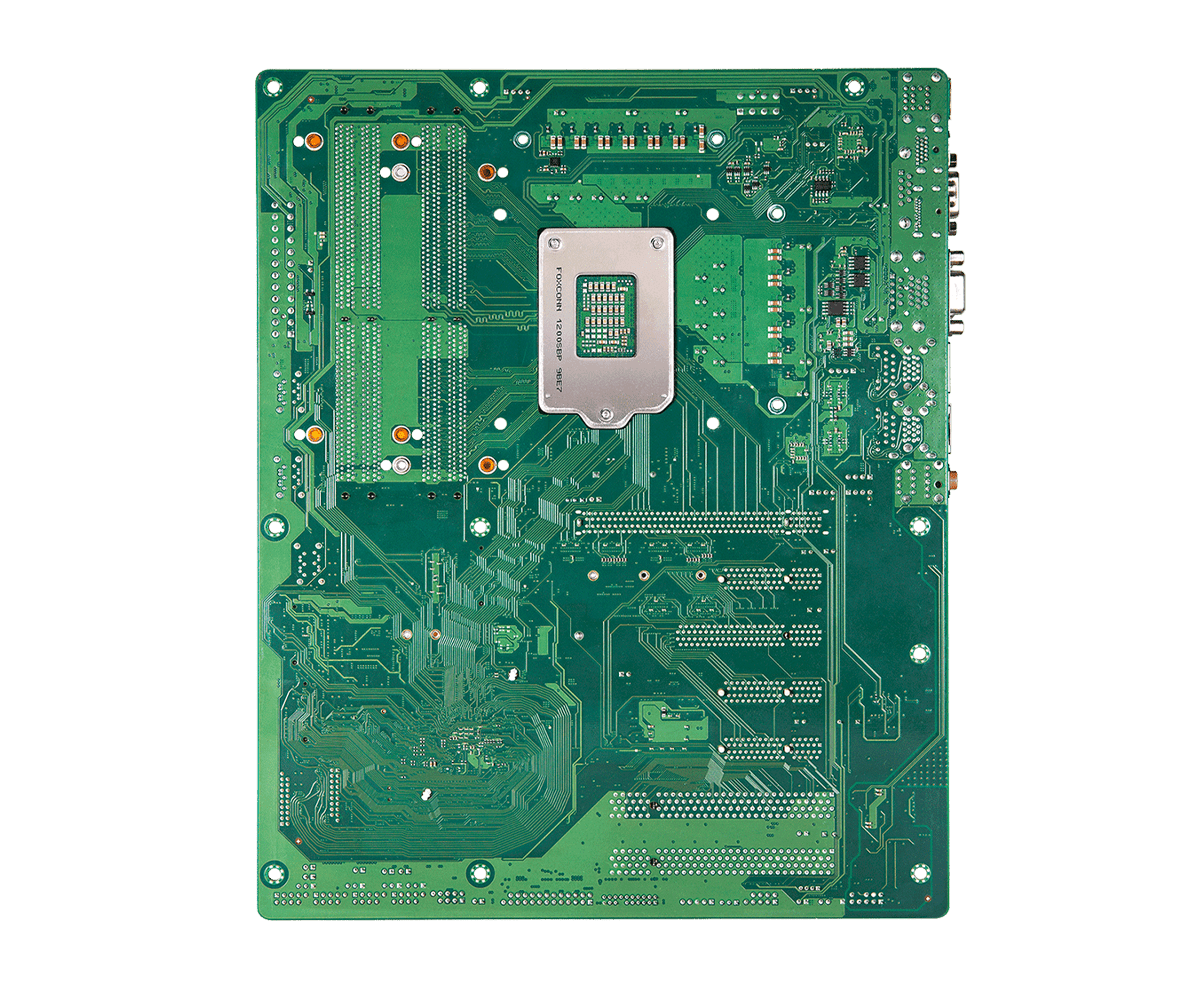

IMB-1711
- Intel 10th Gen (Cometlake-S) Core Processors with Q470E chipset
- 4 x 288-pin Long-DIMM, Dual Channel DDR4 2933 / 2666 / 2400, up to 128GB
- 1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 3 x PCIe x4 Gen3, 2 x PCI
- 4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.0
- 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 6 x SATA3
- 1 x Intel 1Gigabit LAN, 1 x Intel 2.5Gigabit LAN
- Triple display: DP 1.2, VGA, HDMI 2.0a
- TPM 2.0 onboard
- Supports Intel vPro, AMT, RAID 0/1/5/10
- ATX-PWR (24+8-pin)
Processor System
| CPU | Intel 10th Gen (Cometlake-S) Core Processors, up to 125W |
|---|---|
| Chipset | Intel Q470E |
| Socket | LGA1200 |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2933 / 2666 / 2400 MHz - i9 / i7 CPU: up to 2933 MHz - i5 / i3 CPU: up to 2666 MHz - Pentium / Celeron: up to 2400 MHz |
|---|---|
| Capacity | 128GB |
| Socket | 4 x 288-pin Long-DIMM |
Graphics
| Controller | Intel UHD Graphics |
|---|---|
| HDMI | HDMI 2.0a, 4096 x 2160@60Hz |
| DisplayPort | DP 1.2, DP++, 4096 x 2160@60Hz |
| VGA | 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 3 x PCIe Gen3 Slots: - Single: x16 (PCIE1) - Dual: x8 (PCIE1) / x8 (PCIE3) - Triple: x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE3) 2 x PCIe x4 (Gen3) |
|---|---|
| PCI | 2 x PCI |
| M.2 | 1 x M.2 (Key E, 2230) PCIe x1, USB 2.0, CNVi 1 x M.2 (Key B, 3042/3052) PCIe x1, USB 3.2/2.0 + SIM socket |
| SIM Socket | 1 x SIM socket for M.2 Key B |
Audio
| Interface | Realtek ALC887/897 HD Audio. Line-In / Line-Out / Mic-In |
|---|
Ethernet
| Controller / Speed | LAN1: Intel I225LM/I225V (10/100/1000/2500 Mbps) LAN2: Intel I219LM (10/100/1000 Mbps, AMT/vPro) |
|---|---|
| Connector | 2 x RJ-45 |

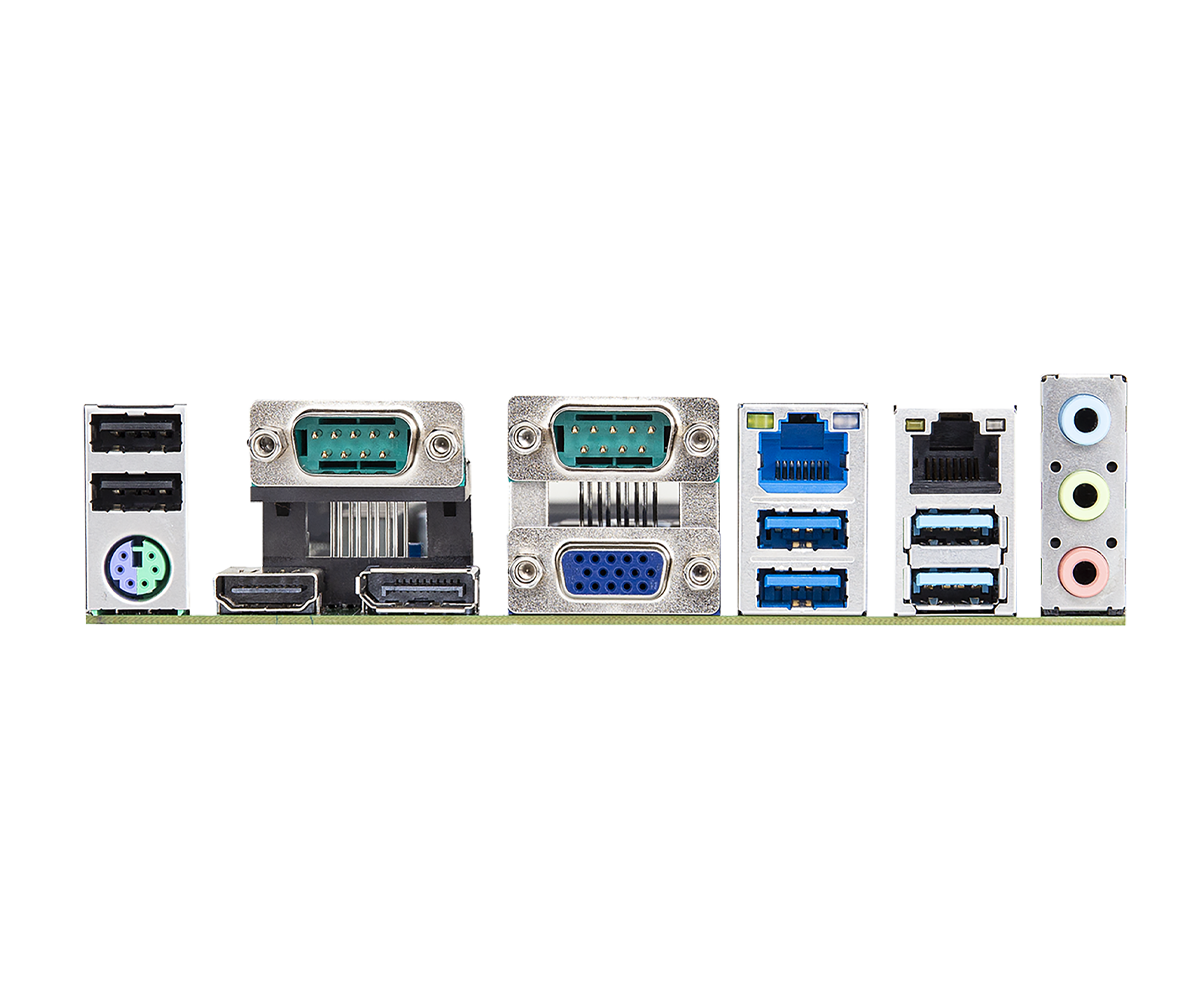

Rear I/O
| HDMI | 1 x HDMI 2.0a |
|---|---|
| DisplayPort | 1 x DP 1.2 |
| VGA | 1 |
| Ethernet | 1 x 1GbE, 1 x 2.5GbE |
| USB | 4 x USB 3.2 Gen2, 2 x USB 2.0 |
| Audio | Line-In, Line-Out, Mic-In |
| COM | 2 x COM (RS-232/422/485) |
| PS/2 | 1 |
Internal Connector
| USB | 4 x USB 3.2 Gen1, 2 x USB 2.0 |
|---|---|
| COM | 4 x COM (RS-232) |
| Parallel | 1 |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT) |
| TPM | TPM 2.0 onboard |
| Speaker Header | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) SATA3 + PCIe x4 * Shared with SATA3_5 / SATA3_6: - PCIe x4 SSD → SATA3_5 & SATA3_6 disabled - SATA SSD → SATA3_5 disabled / SATA3_6 available |
|---|---|
| SATA | 6 x SATA3 (6 Gb/s) |
| RAID | RAID 0/1/5/10 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 segments, 0~255sec |
Power Requirements
| Input PWR | ATX PWR (24+8-pin) |
|---|---|
| Power On | AT/ATX Supported AT: Power on automatically ATX: Requires power button |
Environment
| Operating Temp | 0°C ~ 60°C |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 3 x SCREW M2,D=5 (13G020302031AK) 1 x I/O Shield (13G020643000AK) 2 x SATA Data Cable (14G00010107DAK) |
|---|---|
| Bulk Package | 3 x SCREW M2,D=5 (13G020302031AK) 1 x I/O Shield (13G020643000AK) |
