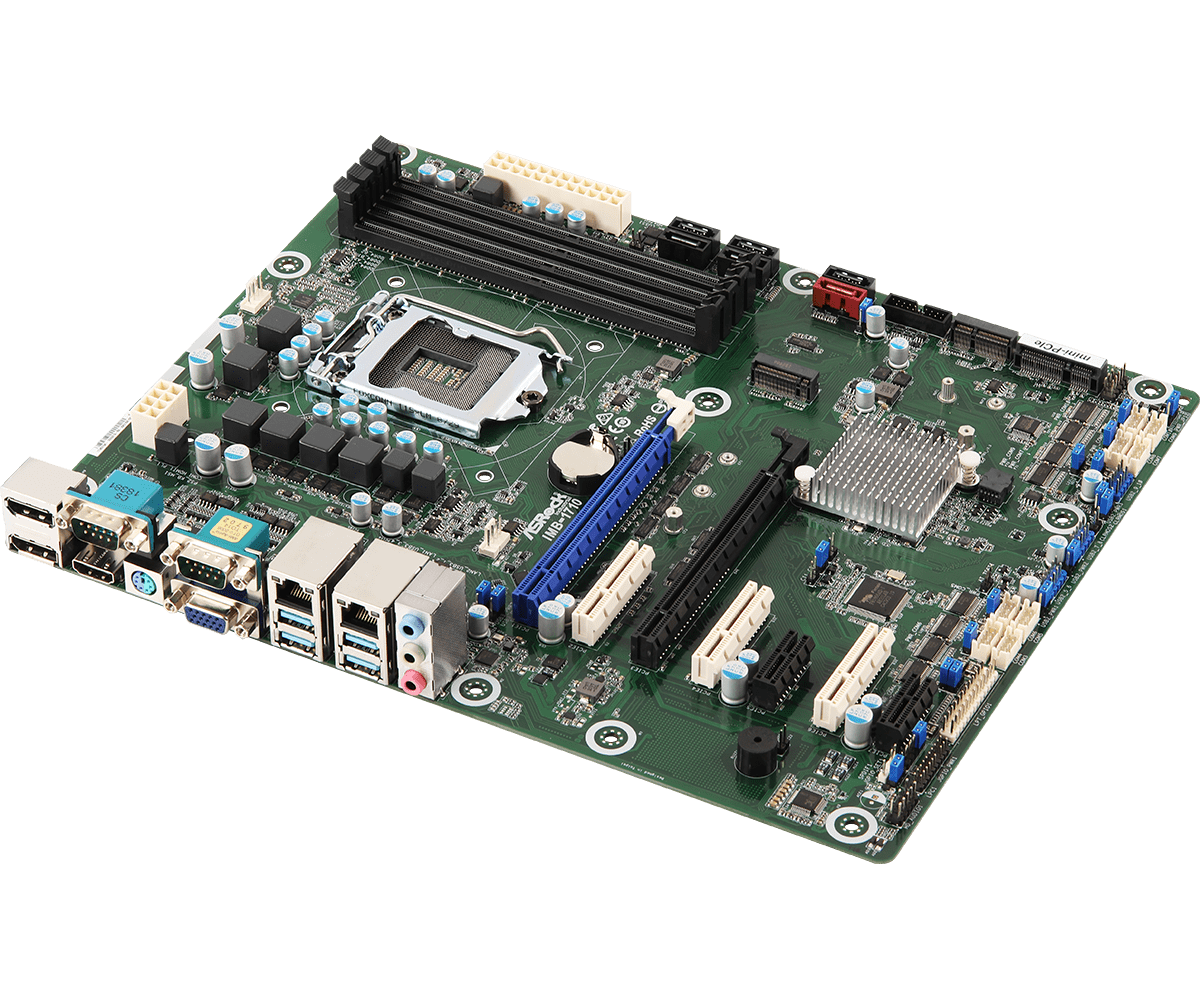

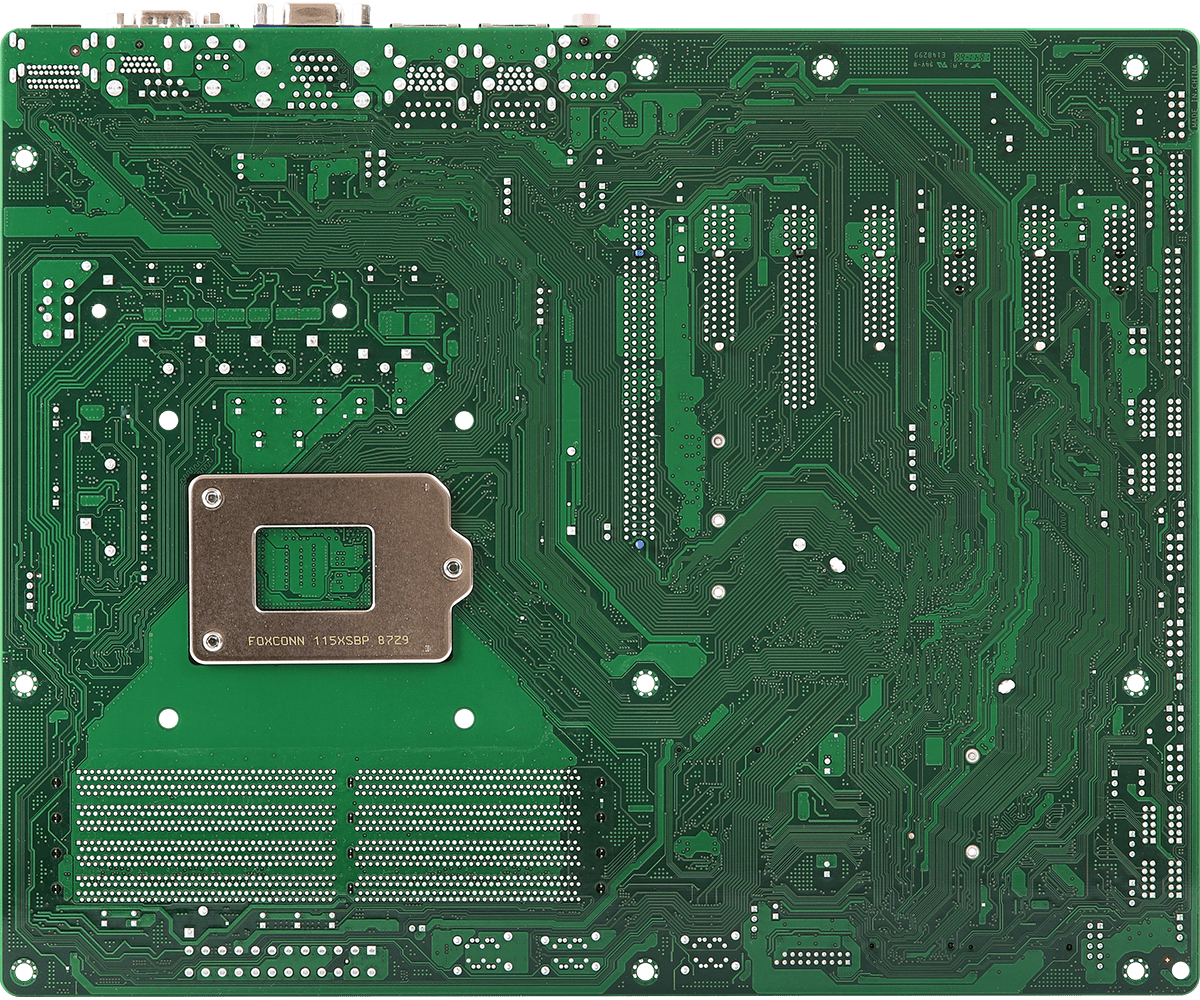

IMB-1710
- Intel 9th / 8th Gen (Coffee Lake-S) Core Processors with Q370 chipset
- 4 x 288-pin Long-DIMM, up to 128GB* DDR4 2666 MHz
- 1 x PCIe x16 (Gen3), 1 x PCIe x8 (Gen3), 3 x PCIe x4 (Gen3), 2 x PCIe x1 (Gen3), 6 x USB 3.1 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x mini-PCIe, 1 x M.2 Key M, 10 x COM, 6 x SATA3
- 2 x Intel 1 Gigabit LAN
- Supports triple display: 1 x HDMI 1.4, 2 x DP 1.2, 1 x VGA
- TPM 2.0 onboard IC
- Supports Intel vPro, AMT, RAID 0/1/5/10
- ATX Power
Processor System
| CPU | Intel 9th / 8th Gen (Coffee Lake-S) Core Processors, up to 95W |
|---|---|
| Chipset | Intel Q370 |
| Socket | LGA 1151 |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2666 MHz |
|---|---|
| Capacity | Up to 128GB* * Core i9/i7/i5: up to 128GB (32GB per DIMM) * Core i3/Pentium/Celeron: up to 64GB (16GB per DIMM) |
| Socket | 4 x 288-pin Long-DIMM |
Graphics
| Controller | Coffee Lake integrated graphics |
|---|---|
| HDMI | HDMI 1.4, up to 4096×2160 @ 24Hz |
| DisplayPort | 2 x DP 1.2 (DP++), up to 4096×2304 @ 60Hz |
| VGA | Up to 1920×1200 @ 60Hz |
| Multi-Display | Triple Display |
Expansion Slot
| PCIe | 3 x PCIe 3.0 Slots: - Single GPU: x16 (PCIE1) - Dual GPU: x8 (PCIE1) / x8 (PCIE3) - Triple GPU: x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE3) 2 x PCIe 3.0 x4 (PCIE4, PCIE6) 2 x PCIe 3.0 x1 (PCIE5, PCIE7) |
|---|---|
| mini-PCIe | 1 x Full/Half size, PCIe x1 + USB 2.0 |
| M.2 | 1 x M.2 Key E (2230), PCIe x1 + USB 2.0 + CNVi (Wireless) |
Audio
| Interface | Realtek ALC887 / ALC897 HD Audio (Line-out, Line-in, Mic-in) |
|---|
Ethernet
| Controller / Speed | LAN1: Intel I210 (10/100/1000 Mbps) LAN2: Intel I219-LM (10/100/1000 Mbps), supports AMT / vPro |
|---|---|
| Connector | 2 x RJ-45 |

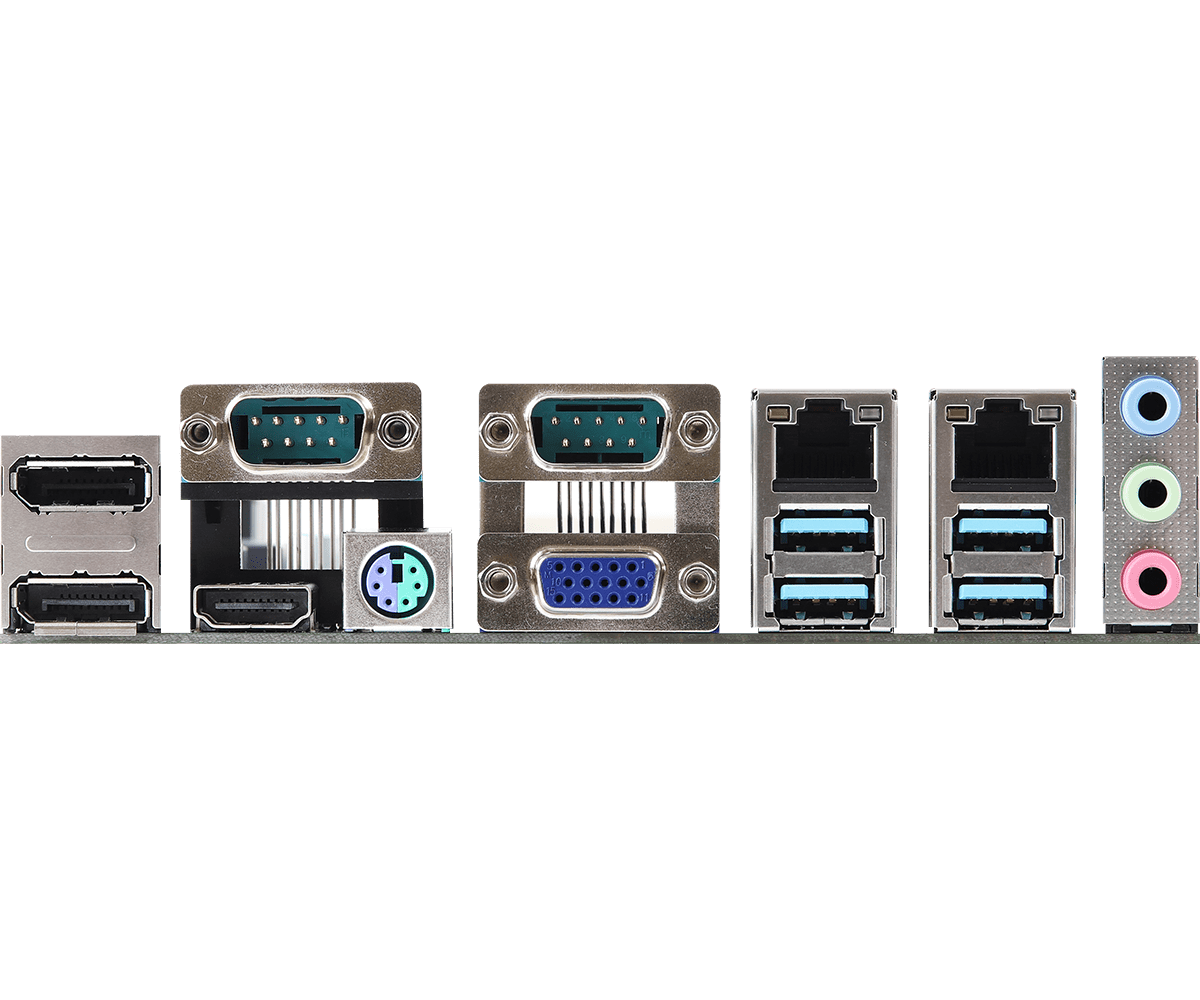

Rear I/O
| HDMI | 1 x HDMI 1.4 |
|---|---|
| DisplayPort | 2 x DP 1.2 |
| VGA | 1 |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.0 |
| Audio | Mic-in / Line-in / Line-out |
| COM | COM1, COM2 (RS-232/422/485) |
| PS/2 | 1 x PS/2 combo |
Internal Connector
| USB | 2 x USB 3.1 Gen1 (1 x header) 6 x USB 2.0 (3 x headers) |
|---|---|
| COM | 8 x COM (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT) |
| TPM | TPM 2.0 onboard |
| LVDS | N/A |
| Speaker Header | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280), PCIe x4 & shared SATA3 |
|---|---|
| SATA | 6 x SATA3 (6Gb/s), SATA3_1 shared with M.2 |
| RAID | Intel RAID 0/1/5/10 |
Watchdog Timer
| Output | Super I/O to RESETCON# |
|---|---|
| Interval | 256 levels (0–255 sec) |
Power Requirements
| Input | ATX PWR (24+8 pin) |
|---|---|
| Power On | AT / ATX modes - AT: Auto power-on when power is ready - ATX: Requires power button |
Environment
| Operating Temp | 0°C ~ 60°C |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW M2 (13G020302010AK) 1 x WiFi Card Screw (13G020305011AK) 1 x I/O Shield (13G020505000AK) 2 x SATA Data Cable |
|---|---|
| Bulk Package | 2 x SCREW M2 (13G020302010AK) 1 x WiFi Card Screw (13G020305011AK) 1 x I/O Shield (13G020505000AK) |
